ZB 50B-2

Handbag Bottom Gluing Machine
  • ZB 50B-2
  • ZB 50B-2

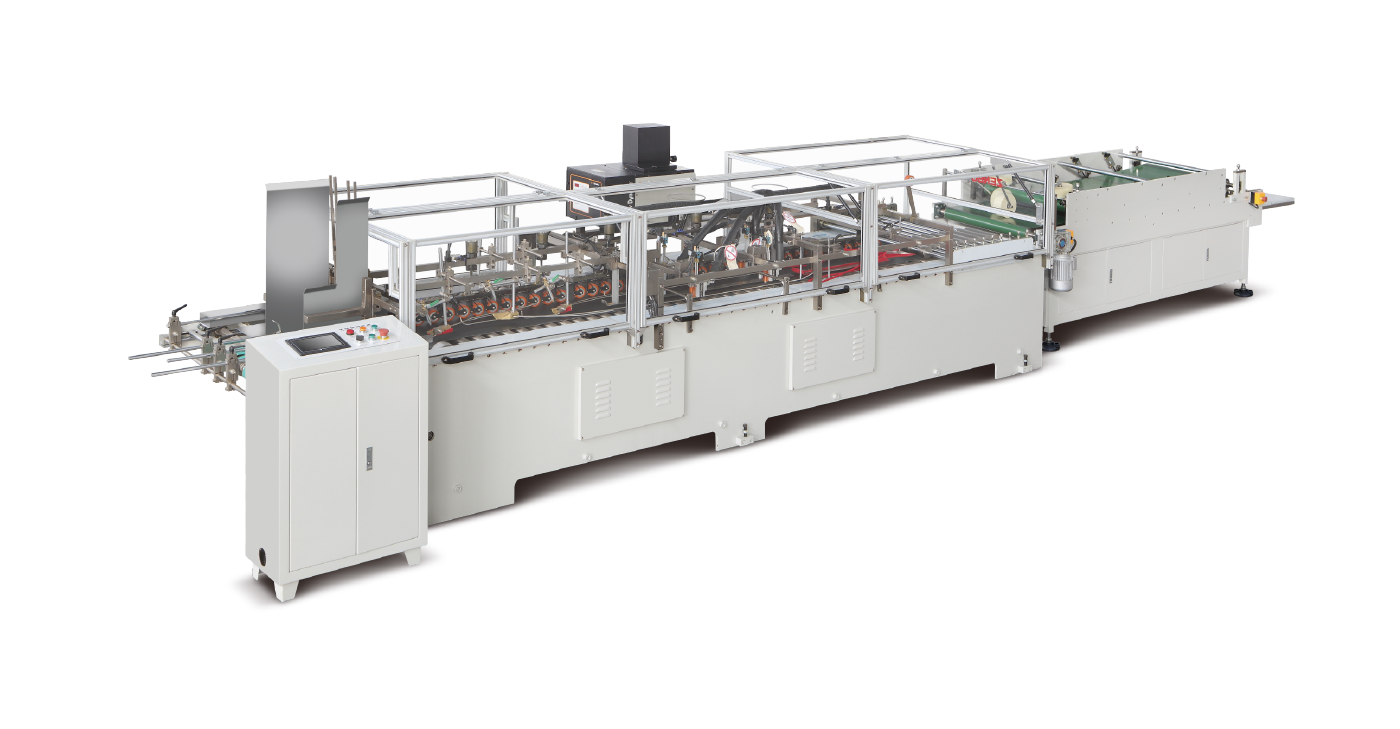

ZB50B – 2Handbag Bottom gluing Machine is on the based of ZB50B Handbag Bottom gluing Machine,not only to inherit all advantages of ZB50B,but also increase the addition way of automatic paper feeding.far away the hand-operated style and abandon the dependence of staff operation proficiency. With hot melt glue adhesive spraying fast and simple using this machine will bring you the most ideal efficiency and the most lucrative returns .

Product Video

Technical parameter

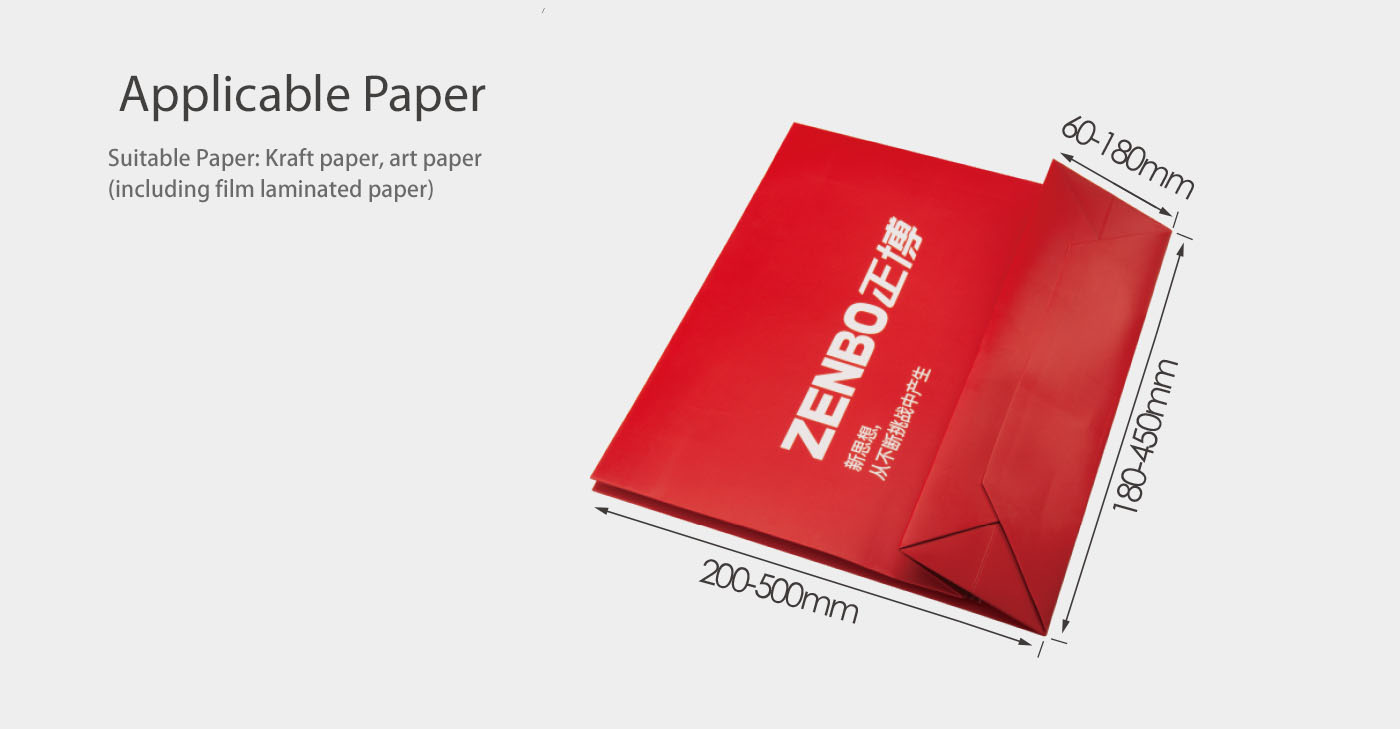

Bottom Width 60-180mm
Bag Width 180-450mm
Bag Height 200-500mm
Sheet Weight 170-300g/m2
Total Power 6kw
Machine Size 7000x1500x1600mm
Speed 70-100 bags/min
Total Weight 1.8T
Glue Type Hot-melt glue

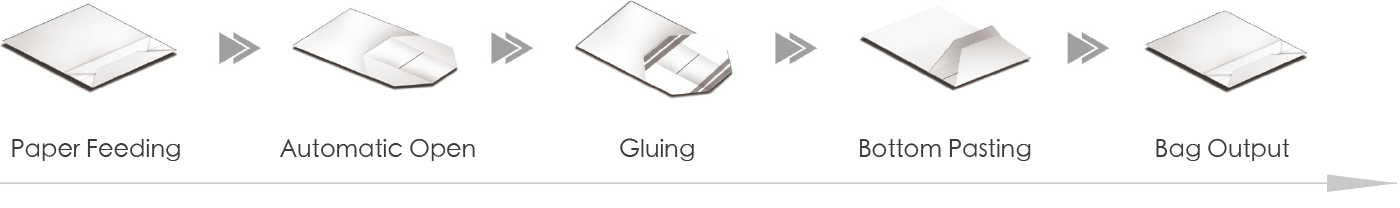

Process flow

Understand the process flow
