Fully Automatic Sheet-feeding Paper Bag Making Machine
  • ZB1100S-380
  • ZB1100S-380
  • ZB1100S-380


ZB1100S-380 Fully automatic sheet feeding paper bag making machine (independent innovation) adopts international advanced production process and management system. Humanized intelligence operation interface combines with PLC and Servo control system make this machine’s technology, performance and production efficiency achieve the leading level in the world.

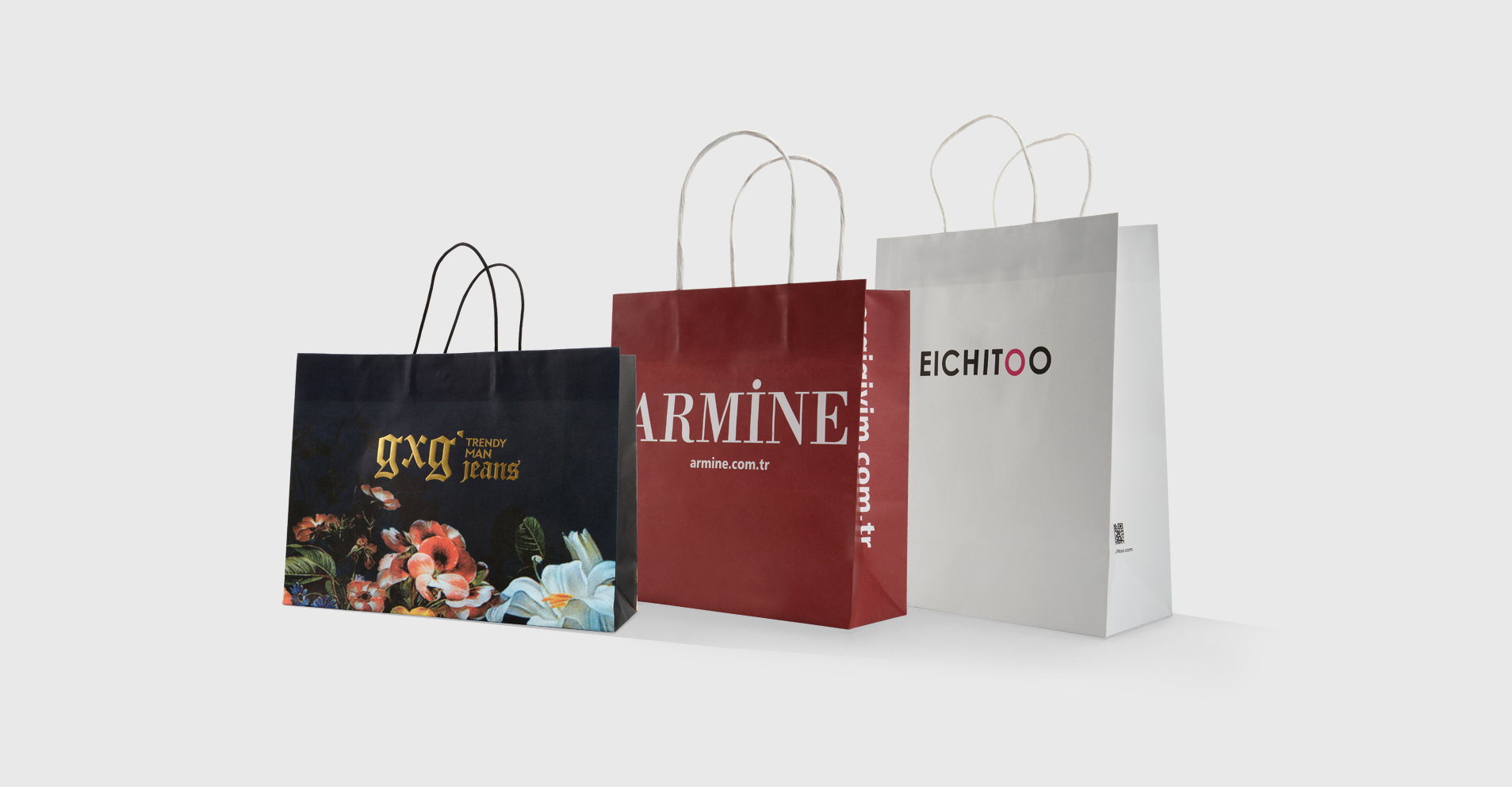

ZB1100-380 is a fully automatic paper bag making machine which can in-line produce twisted rope handle. This machine can produce 3 types paper bag, 3 different crafts as below:
1.Paper handle making、handle pasting、top folding、tube forming、gusset forming、 square bottom open、bottom gluing、bottom pasting、compaction output. 2.Paper handle making、handle pasting(without top folding)、tube forming、gusset forming、 square bottom open、bottom gluing、bottom pasting、compaction output. 3. Reinforce card making、reinforce card pasting、top folding、tube forming、gusset forming、 hole punching、square bottom open、bottom gluing、bottom pasting、compaction output.
This machine equips advanced compact servo handle cut-off system to replace the traditional complex mechanical structure, which reduced the setup time and supplied a comfortable operation space. The bag making machine and handle making unit have separate servo control systems to avoid the handle waste.

Technical parameter

Technical Parameters

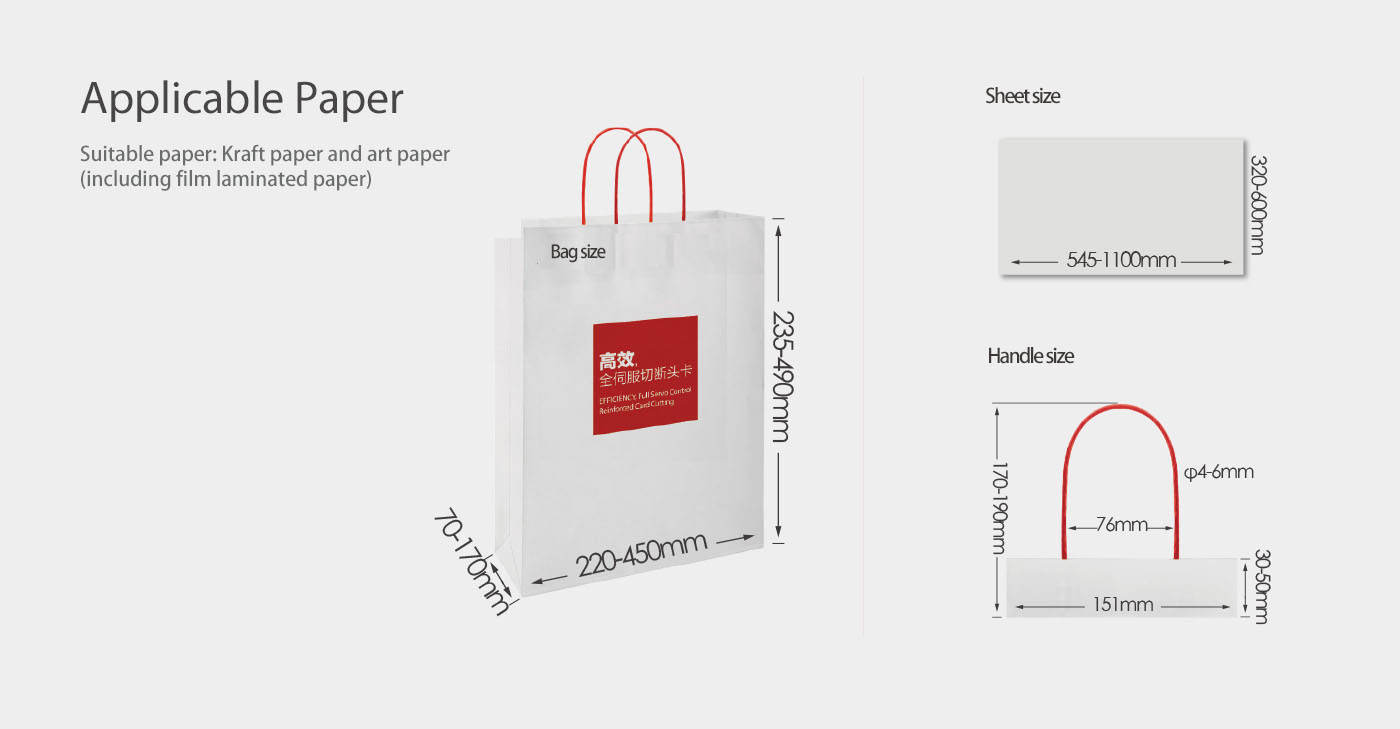

Max.Sheet(LxW) 1100X600 1100X600 1100X600
Min.Sheet(LxW) 545X320 545X320 545X320
Sheet Weight 120g-190g 120g-190g 120g-190g
Bag Width 180-380mm 180-380mm 180-380mm
Bottom Width 70-160mm 70-160mm 70-160mm
BottBag Length 235-490mm 235-540mm 235-490mm
BoTop Folding Width 40-60mm —— 40-60mm
Handle Patch Length 151mm 151mm 151mm
Handle Patch Width 30-50mm 30-50mm 30-50mm
Handle Patch Weight 140g-200g 140g-200g 250g-350g
Handle Patch Roll Diameter φ 1000mm φ 1000mm φ 1000mm
Handle Patch Roll Width 60-100mm 60-100mm 60-100mm
Paper Rope Diameter 4-6mm 4-6mm ——
Handle Rope Height 170-190mm 170-190mm ——
Speed 40-70bags/min
Total Power 20kw
Total Weight 22T
Machine Size 16450x5300x3100mm
Glue Type Water soluble cold glue(hot-melt glue)
