ZB 60S

Paper Bag Bottom Gluing Machine
  • ZB 60S
  • ZB 60S

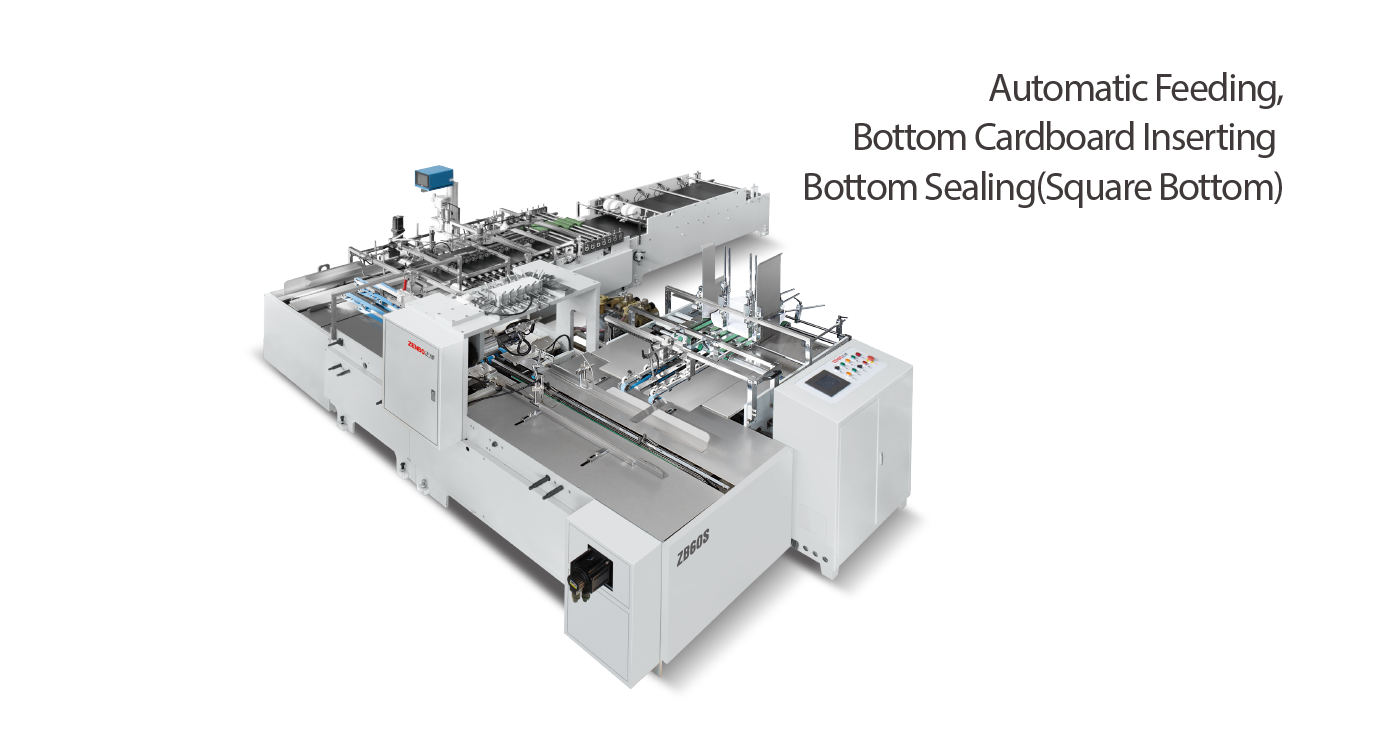

ZB 60S Handbag bottom gluing machine (independent innovation), adopts servo motor drive, PLC control system, achieve automatic bottom cardboard inserting function. It meets the special requirement of boutique paper bag making.
The basic working flow of this machine is automatic feeding the unclosed-bottom paper bag, bottom opening, bottom cardboard inserting, two times positioning, coated water base (or spray gluing), bottom closing and compaction output the paper bag.
With servo system for bottom cardboard taking and bottom cardboard inserting, ensure the bottom cardboard process is stable and high precisely.
Use gluing wheel to coated the water base glue on bag bottom(or spray gluing), make the glue is evenly coated on full bottom , not only improve the bag quality, but also increase the profit for customers.

Technical parameter

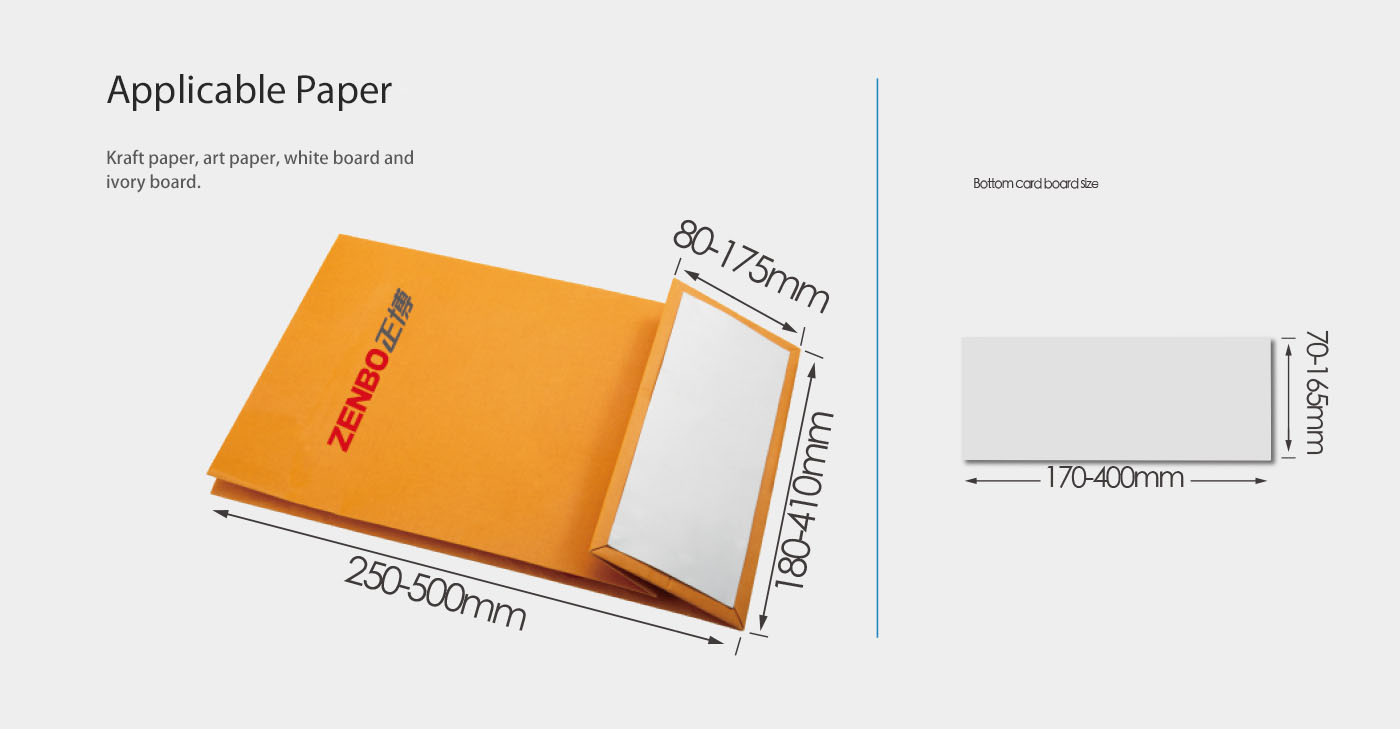

Bottom Width 80-175mm
Bottom Cardboard Width 70-165mm
Bag Width 180-410mm
Bottom Cardboard Length 170-400mm
Bag Height 250-500mm
Sheet Weight 140-250g/m2
Bottom Cardboard Weight 250g-400g
Total Power 11kw
Machine Size 5100x6600x1733mm
Speed 50-80 bags/min
Total Weight 4T
Glue Type Water soluble cold glue

Process flow
