ZB 1200S-430

Fully Automatic Sheet-feeding Paper Bag Making Machine
  • ZB 1200S-430
  • ZB 1200S-430
  • ZB 1200S-430
  • ZB 1200S-430

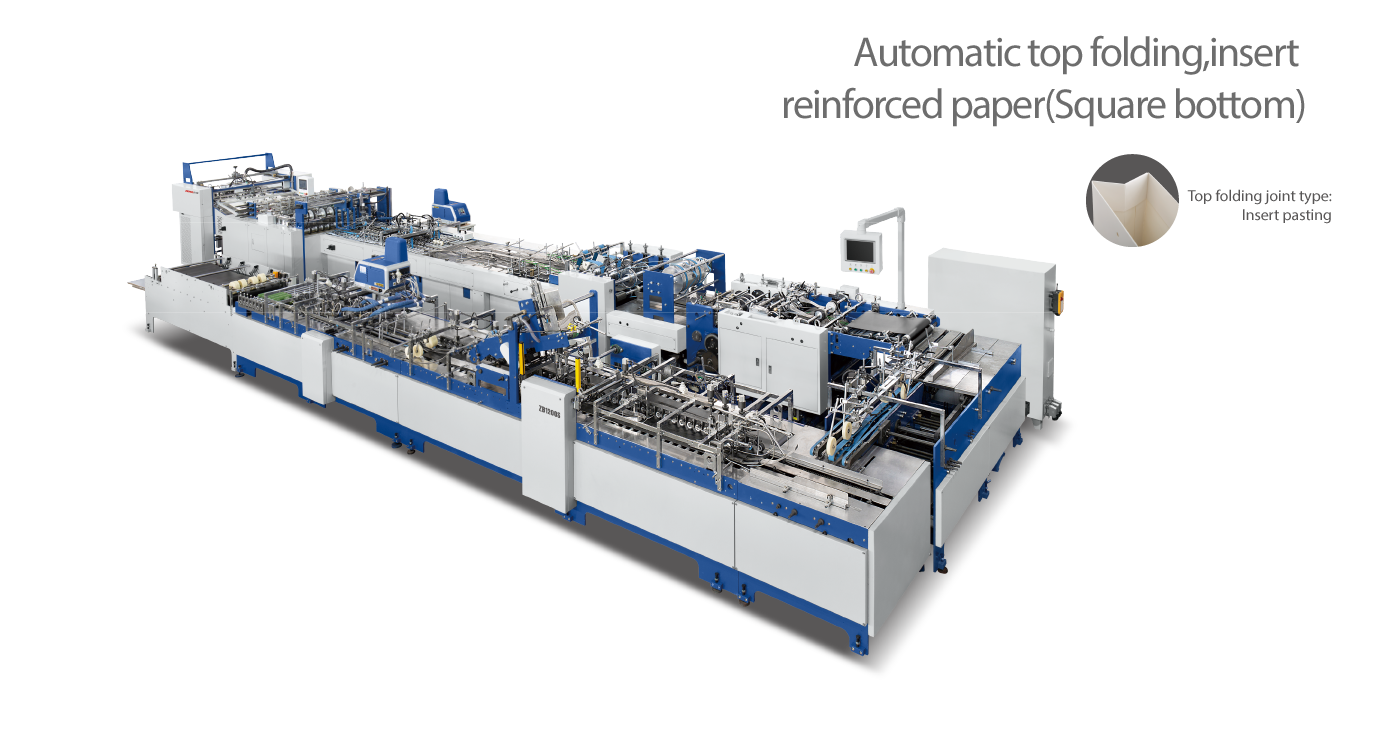

ZB1200S-430 Fully automatic sheet feeding paper bag making machine, can produce luxury brand paper bag, gift bag in one time (without handles). This machine possess a large number of independent patents, create the high-speed automatic paper bag production. Adopts with PLC and Servo control system, reserve of extensible intelligent port for future system upgrades and remote services.
The basic working flow is sheet feeding, positioning, top folding (insert pasting), tube forming, gusset forming, bottom open, servo bottom cardboard inserting(square bottom), bottom gluing, compaction and output.
All these steps increase the bag making efficiency and save a lot of labor cost, replace the traditional manually paper bag making way. Realize automation, intelligent and high efficiency production requirement, which achieve the leading level in the world.

Product Video

Technical parameter

Max.Sheet(LxW) 1200x600mm
Min.Sheet(LxW) 540x320mm
Sheet Weight 190g-300g/m2
Bag Height 220-500mm
Bottom Width 80-175mm
Bag Width 180-430mm
Top Folding Depth 30-70mm
Length Of Bottom Cardboard 170-420mm
Width Of Bottom Cardboard 70-165mm
Bottom Card Weight 250-400g
Total Power 16kw
Machine Size 14400x4900x1800mm
Speed 50-80bags/min
Total Weight 16.4T
Glue Type Water soluble cold glue(hot-melt glue)

Process flow

Understand the process flow
