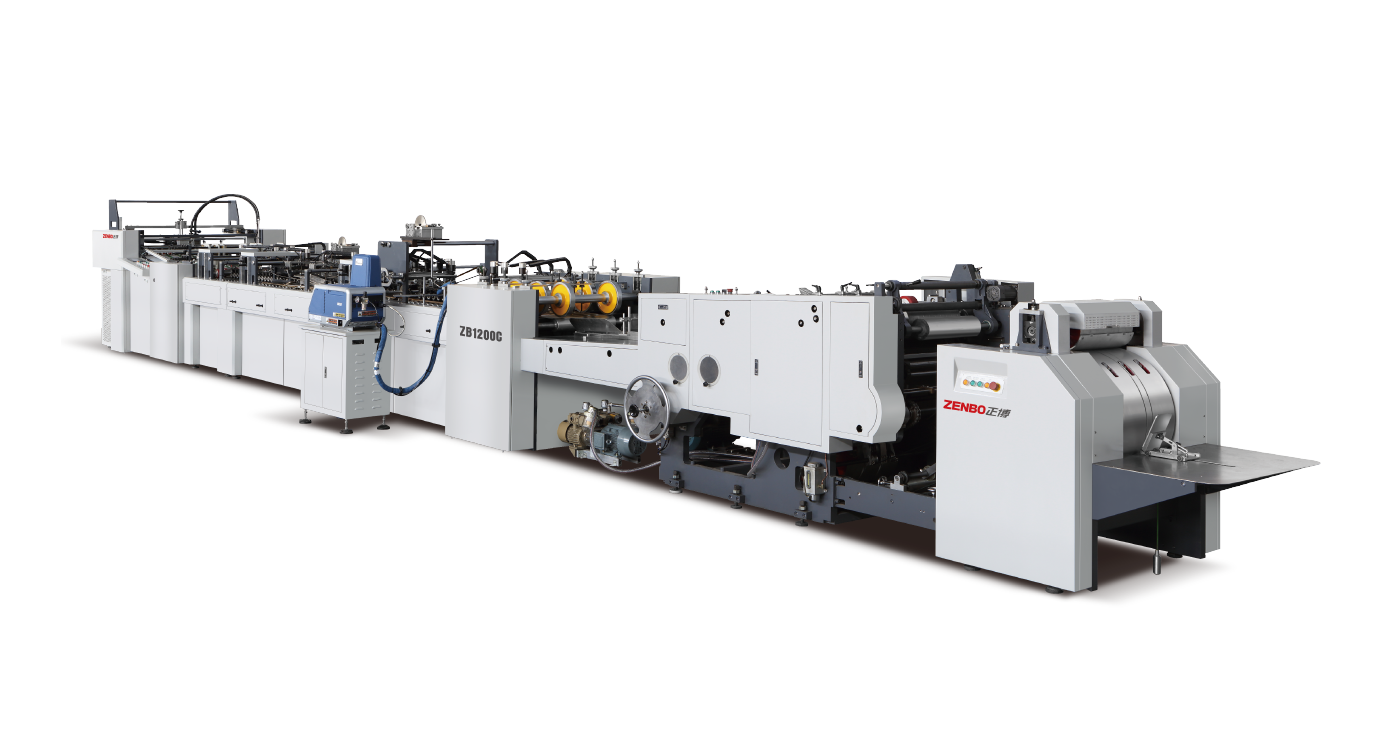

Fully Automatic Sheet-feeding Paper Bag Making Machine
  • ZB1200C-430
  • ZB1200C-430
  • ZB1200C-430
  • ZB1200C-430


Automatic sheet-feeding paper bag making machine is suitable for the mass bag production, it is the first choice of medium and top grade handbag device. The product adopts mechanical, electricity, light,gas integration technology, setting a number of its proprietary technology, use sheet paper as raw material , can one-time finish: paper feeding, positioning, die-cutting, tube forming, gusset forming, square bottom folding and gluing automatic, and then compaction output.The variable speed drive technology, combined with the system of vertical and horizontal creasing, bottom folding realize trackless bag molding process. using the PLC programmable control, frequency control technology to realize the integral multi-dimensional control, more centralized control and single point remote control operating system . with characteristics of good quality and high efficiency,its technology ranks leading level in domestic similar products.

Product Video

Technical parameter

Max.Sheet(LxW) 1200x600mm
Min.Sheet(LxW) 540x300mm
Sheet Weight 120g-300g/m2
Bag Height 250-540mm
Bottom Width 80-170mm
Bag Width 180-430mm
Total Power 10kw
外型尺寸(长X宽X高) 14800x2400x1800mm
Speed 50-70bags/min
Total Weight 12T
Glue Type Water soluble cold glue(hot-melt glue)

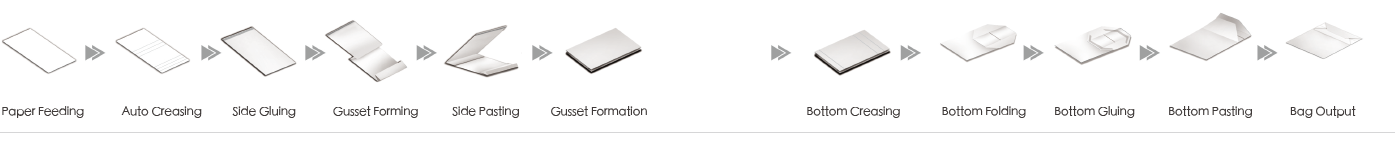

Process flow

Understand the process flow
